SKF Hydraulic puller kit TMHC110E_KORTON Bearing Industries Limited.

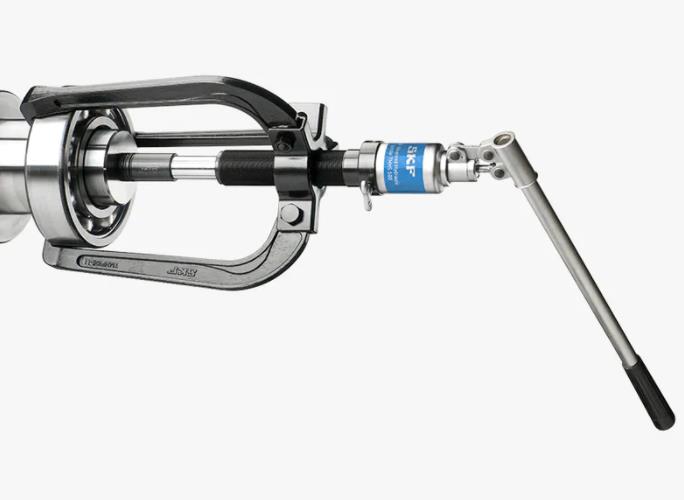

The SKF TMHC 110E is a hydraulic puller kit, which combines a jaw puller and a strong back puller with up to 100 kN (11.2 ton US) pulling power. The versatile puller kit facilitates safe and easy dismounting in a variety of applications.

A versatile puller kit facilitates safe and easy dismounting in a variety of applications
Hydraulic spindle facilitates easy and quick dismounting
High load rating of 100 kN (11.2 US ton)
The strong back puller includes two different arm lengths for maximum reach of 120 mm (4.7 in.)
The jaw puller can be assembled as a three-arm or two-arm puller depending on the space and demands of the application
The firm grip of the strong back puller behind the bearing’s inner ring reduces the force required to dismount the bearing
Supplied with extension rods to allow quick adaptation to pulling lengths up to 245 mm (9.6 in.)
The spring-loaded centre point of the hydraulic spindle allows easy puller centring minimizing the risk of shaft damage

TECHNICAL DATA
Designation		TMHC 110E
Description		Advanced hydraulic puller kit
General	Contents	1 x arm-assembly stand
		3 x arms, set 1 (TMHP10E-9)
		3 x arms, set 2 (TMHP10E-10)
		1 x separator set
		1 x beam
		2 x main rods
		2 x extension rods, 125 mm (4.9 in)
		1 x hydraulic spindle TMHS 100
		2 x extension pieces for hydraulic spindle; 50, 100 mm (2.0, 3.9 in)
		1 x nosepiece with centre point for hydraulic spindle
	Maximum stroke	80 mm (3.1 in)
	Nominal working force	100 kN (11.2 US ton force)
	Weight	13,5 kg (29.8 lb)
	Cycle life hydraulic cylinder	Minimum 5000 cycles up to 100 kN (11.2 US ton force)
	Threading hydraulic cylinder	UN 1½'' x 16 tpi
	Safety valve setting hydraulic cylinder	105 kN (11.8 US ton force)
	Carrying case dimensions	580 x 410 x 70 mm (23 x 16 x 2.8 in)
Jaw puller	Effective arms length, arms set 1 (TMHP10E-9)	65 mm (2.5 in)
	Width of grip, arms set 1	50-110 mm (2-4.3 in)
	Claw height	8 mm (0.3 in)
	Effective arms length, arms set 2 (TMHP10E-10)	115 mm (4.5 in)
	Width of grip, arms set 2	75-170 mm (2.9-6.7 in)
	Claw height	8 mm (0.3 in)
Strong back puller	Maximum reach	250 mm (9.8 in)
Strong back puller	Shaft diameter range	20 - 100 mm (0.8 - 4 in)

SPARE PARTS
Designation	Description
TMHP 10E-5	Four arm stand with bolts and nuts for TMHP 10E and TMHC 110E
TMHP 10E-9	Arm for TMHC 110E, 140 mm long
TMHP 10E-10	Arm for TMHP 10E and TMHC 110E, 190 mm long
TMBS 100E-1	Beam for TMBS 100E and TMHC 110E
TMBS 100E-2	Main rods with washers and nuts for TMBS 100E, 150E and TMHC 110E
TMBS 100E-3	Extension rod for TMBS 100E, 150E and TMHC 110E, 125 mm long
TMBS 100E-5	Separator with bolts and nuts for TMBS 100E and TMHC 110E
TMHS 100	Advanced hydraulic spindle, 100 kN
TMHS 100-1	Advanced hydraulic spindle, 100 kN, spindle only
TMHS 8T	Set of extension pieces and nose piece for TMHS 100 and 8E
